Clearly a better value

A&D Company

A&D is widely recognized for its expertise in tensile testing, material testing, and precision measurement systems used across industries such as manufacturing, research, automotive, and quality control laboratories. A&D tensile testers are designed with high-accuracy load cells, fast sampling rates, and advanced data acquisition software to ensure reliable and repeatable test results.

Lightweight and compact tension/compression testing device for tabletop use which employs a single column design

STB series

Features

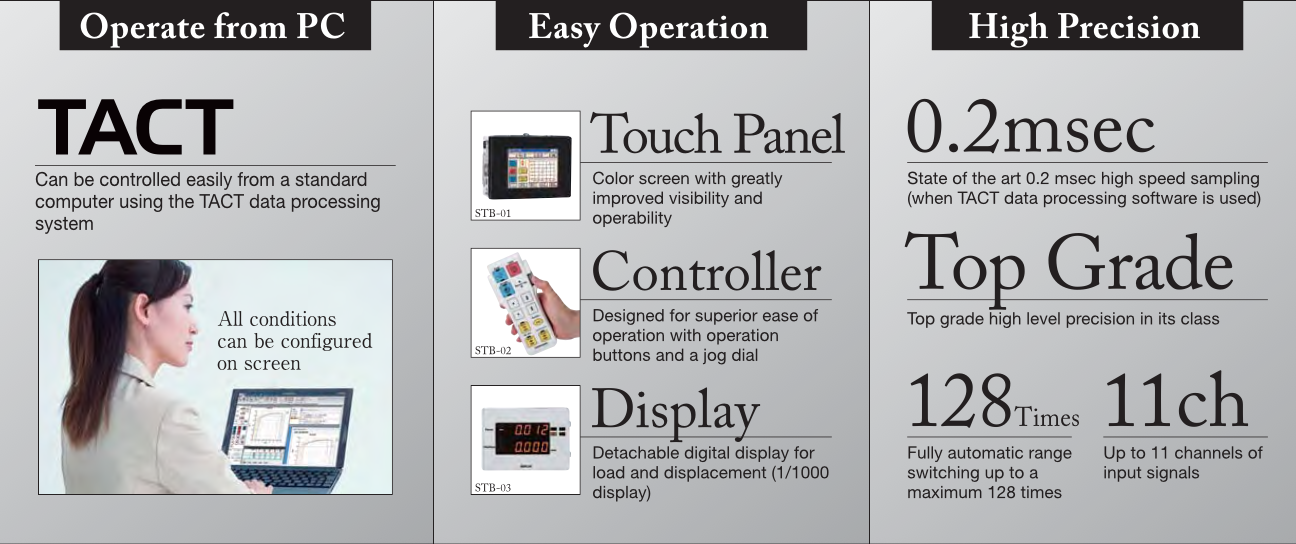

-High speed sampling rate of 0.2 msec meeting top international standards (when using TACT)
-All condition settings can be set from PC
-Manual range settings are not required with a fully automatic adjusting range
-Comes with Grade 1 high level accuracy as a load measurement testing machine
-Input signals for a maximum of 11 channels
-Frame of main unit has increased rigidity up to 30% higher than competitors' models

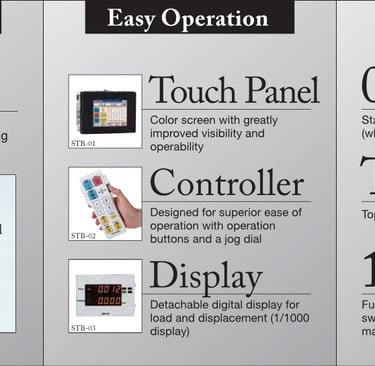

-Color display touch panel - Visibility and ease of use have been vastly improved with the color display of test machine data and operating conditions

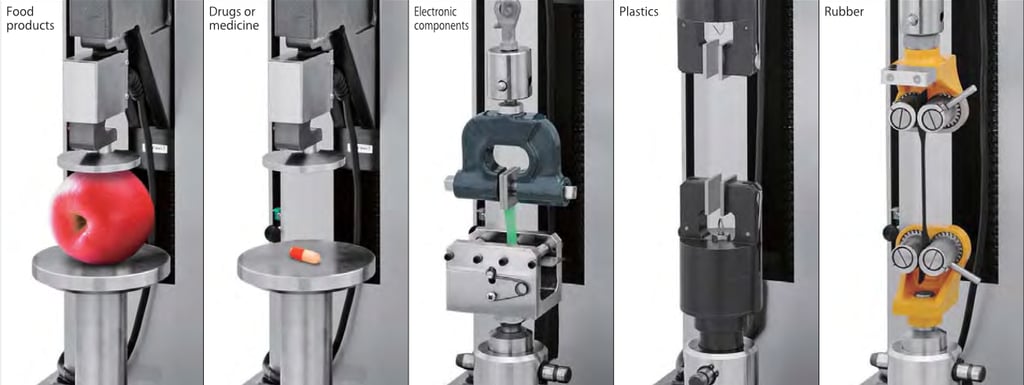

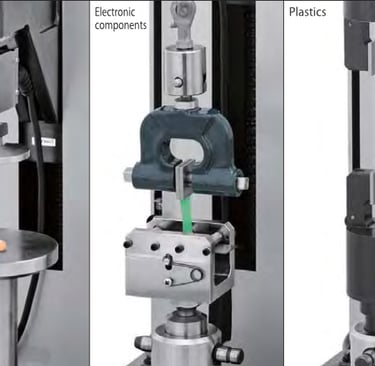

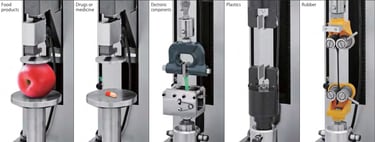

TENSILON STB Series is capable of evaluating both the performance and physical properties of a multitude of items, including food products, drugs and medicine, electronic components and miniature parts.

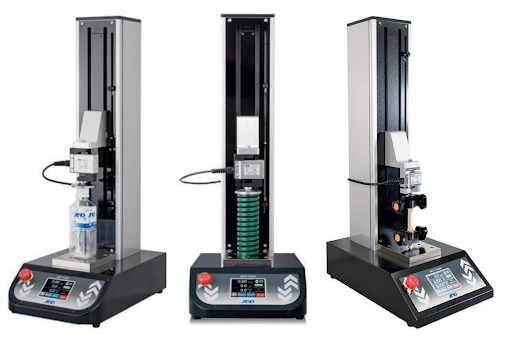

MCT Series tensile tester is a compact, tabletop universal testing machine designed for precise tension and compression testing of small components and materials.

Features:

・Color touch panel for easy operation and high accuracy

・Power on and ready to use

・Easily set test speed digitally

・Software for PC is attached with main unit for free

(Stand-alone use is also OK with touch panel)

・Load, displacement and load peak hold display

・Load measurement accuracy ±0.2% FS

・Load display resolution

0.1N (MCT-1150)/0.01N (MCT-2150)/0.001N(MCT-2150W)

MCT series
